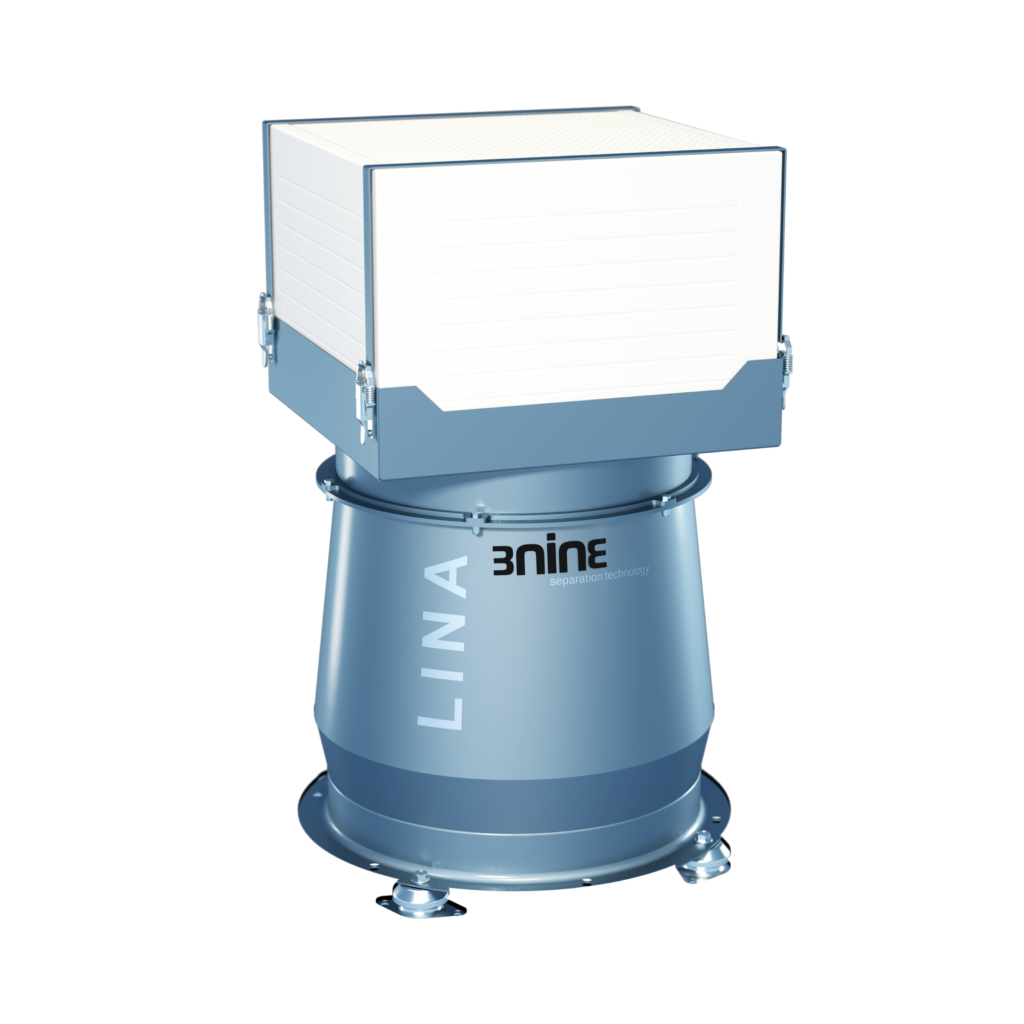

The oil mist eliminator Lina is specifically designed for enclosed machine tools, with a cabin size of 176 CF (5m³) or less.

The Lina has a capacity of 300 CFM (500 m³/h) and is designed to be mounted directly on top of, the side or on a stand close to the machine tool.  This saves floor space and unnecessary pipe work. It also makes it easier to move the machine tool when production requirements change.

Users with small machine tools can now afford the same constant efficiency, flexibility, minimal maintenance solution offered by other 3nine products. The Lina offers unbeatable economy and a very quick ROI.

With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

176 CF

Airflow

300CFM

Unit

Lina 500

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

176 CF

Airflow

300CFM

Operating condition

41-122 F

Power supply

230/460V, 3-phase, 30/15A, 60Hz

Motor rating

0.66kW

Rated current

2.6A (230V) – 1.7A (460 V)

Speed

3400 rpm

Height with HEPA

33''

Diameter

Ø 18.9''

Weight

119 lbs

Inlet pipe

Ø 5''

Sound level

<65 dB (A)

The oil mist eliminator Lina is specifically designed for enclosed machine tools, with a cabin size of 176 CF (5m³) or less.

The Lina has a capacity of 300 CFM (500 m³/h) and is designed to be mounted directly on top of, the side or on a stand close to the machine tool.  This saves floor space and unnecessary pipe work. It also makes it easier to move the machine tool when production requirements change.

Users with small machine tools can now afford the same constant efficiency, flexibility, minimal maintenance solution offered by other 3nine products. The Lina offers unbeatable economy and a very quick ROI.

With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.

Unit

Lina 500

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

176 CF

Airflow

300CFM

Operating condition

41-122 F

Power supply

230/460V, 3-phase, 30/15A, 60Hz

Motor rating

0.66kW

Rated current

2.6A (230V) – 1.7A (460 V)

Speed

3400 rpm

Height with HEPA

33''

Diameter

Ø 18.9''

Weight

119 lbs

Inlet pipe

Ø 5''

Sound level

<65 dB (A)

Installation images

Dennis Yeaton, General Manager Triangle engineering Inc., USA

Triangle Engineering Inc., USA

"Our first Clara was installed over a year ago, and has required ZERO maintenance. We now have three 3nine units installed, and our shop air is noticeably cleaner. The fact that the units are quiet and mounted directly on our machines is a bonus."
