Cleaner Air, Lower Costs, and Smarter Technology
Discover the APEX series – 3nine’s latest oil mist separators, designed to improve air quality in workshop environments. Unlike traditional filter-based systems that clog quickly and require frequent replacements, our technology is based on separation rather than collection. This means less waste, lower costs, and a healthier work environment.
Why Choose the APEX Series?
The oil mist separators from the APEX series are developed for efficiency, sustainability, and low operating costs. They are suitable for all types of machining – even the most demanding processes, such as cast iron machining, grinding, and operations using both straight oil and emulsions. With a smart and maintenance-friendly design, installation is easy, upkeep is smooth, and performance is reliable.
The Advantages of 3nine’s Separation Technology
- Cleaner air & better work environment – 99.9% separation of particles down to 1 micron.
- Lower operating costs – Fewer filter changes and reduced downtime.
- Sustainability & less waste – Recycle cutting fluids and reduce environmental impact.
- Real-time monitoring – LED indicator displays status and efficiency.
- Works everywhere – Handles everything from grinding to heavy metal machining.
Separation Instead of Collection – A Smarter Choice
Traditional systems collect oil mist in filters that clog quickly. The oil mist separators from 3nine separate the mist directly from the air. This keeps your workshop cleaner, reduces filter waste, and lowers operating costs.
Download the APEX brochure
Want to learn more about our APEX oil mist separators and find the right solution for your needs? Enter your name and email, and we’ll send the brochure directly to you.

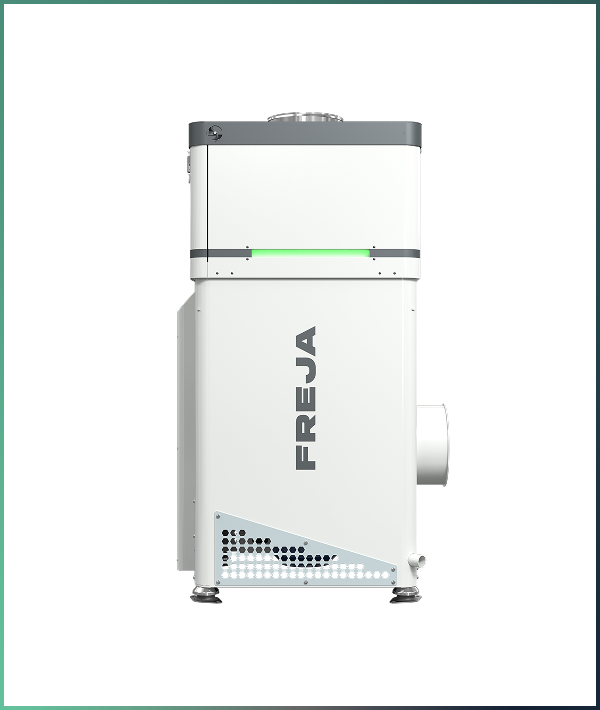

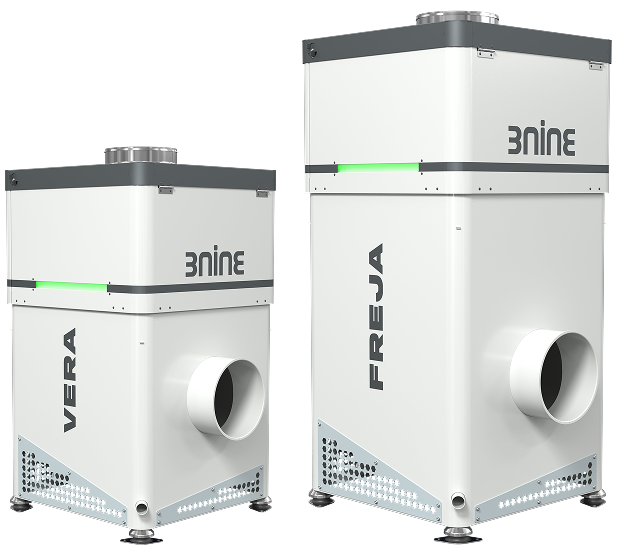

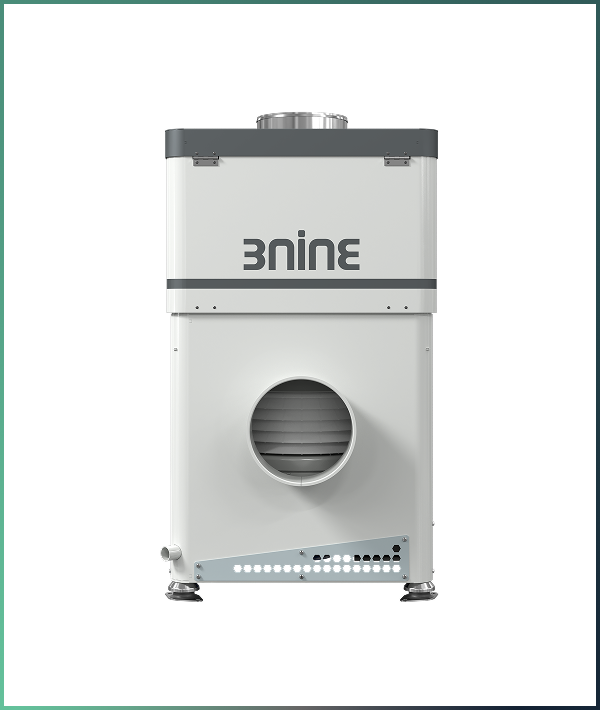

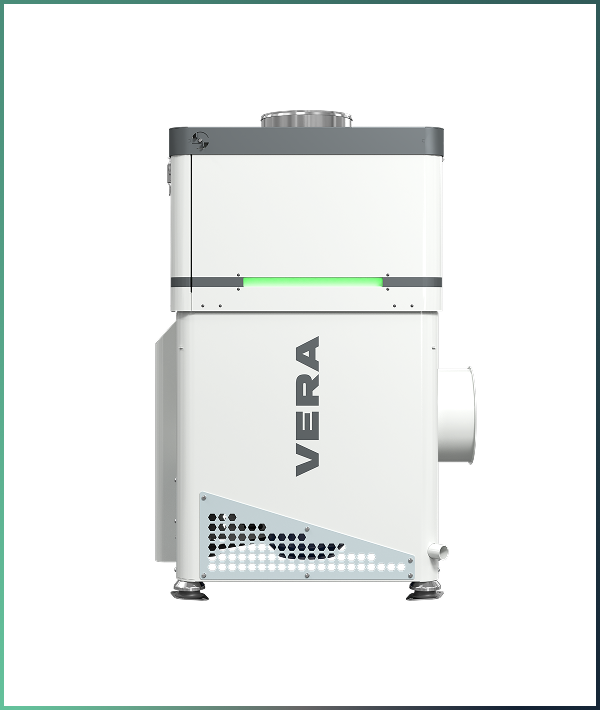

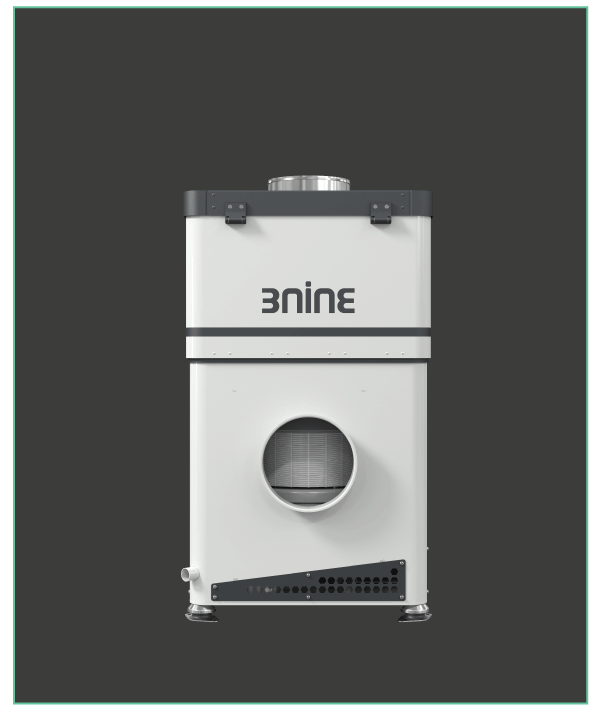

| Technical Data | VERA | FREJA | |
|---|---|---|---|
| Cabin size | 176 CF | 353 CF | |
| Air flow | 300 CFM | 600 CFM | |
| Operating conditions | <122°F | <122°F | |
| Power supply | 3-phase 200V/400V/480V | 3-phase 200V/400V/480V | |
| Rated current | 230V 5.5A / 400V 3.77A / 480V 3.14A | 230V 6.08A / 400V 3.77A / 480V 3.55A | |
| Motor rating | 50 Hz 1.2 kW / 60 Hz 1.7 kW | 50 Hz 1.65 kW / 60 Hz 2 kW | |
| Weight | 229 lbs | 262 lbs | |
| Height | 40 in | 47 1/2 in | |
| Width | 23 in | 23 in | |
| Depth | 25 1/4 in | 25 1/4 in | |
| Inlet pipe | 7 7/8 in | 7 7/8 in | |
| Sound level | <69 db (A) | <69 db (A) |
