The oil mist eliminator Emma is the largest unit in the 3nine BLUE LINE Series and was designed specifically for applications where high airflow is essential, such as very large cabins or open machine tools.

The Emma develops 1,500 CFM (2500 m³/h) and works on enclosed cabins of up to 710 CF. Multiple Emma’s can be used to create a solution for flow rates needed above 1,500 CFM (2500 m³/h). Like the other BLUE LINE products, the Emma employs disc stack technology, so its maintenance requirements are minimal and efficiency is high and consistent.

With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

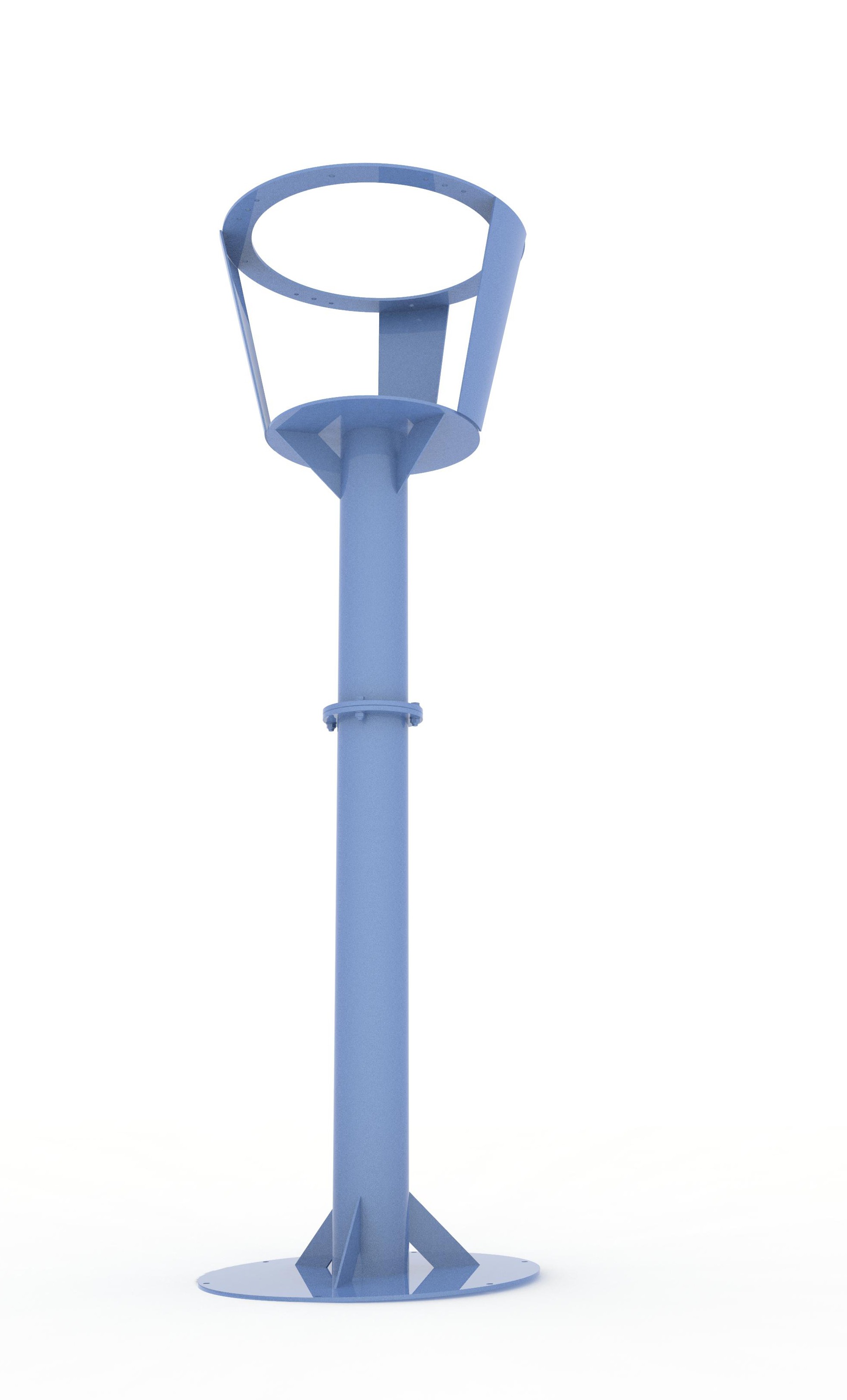

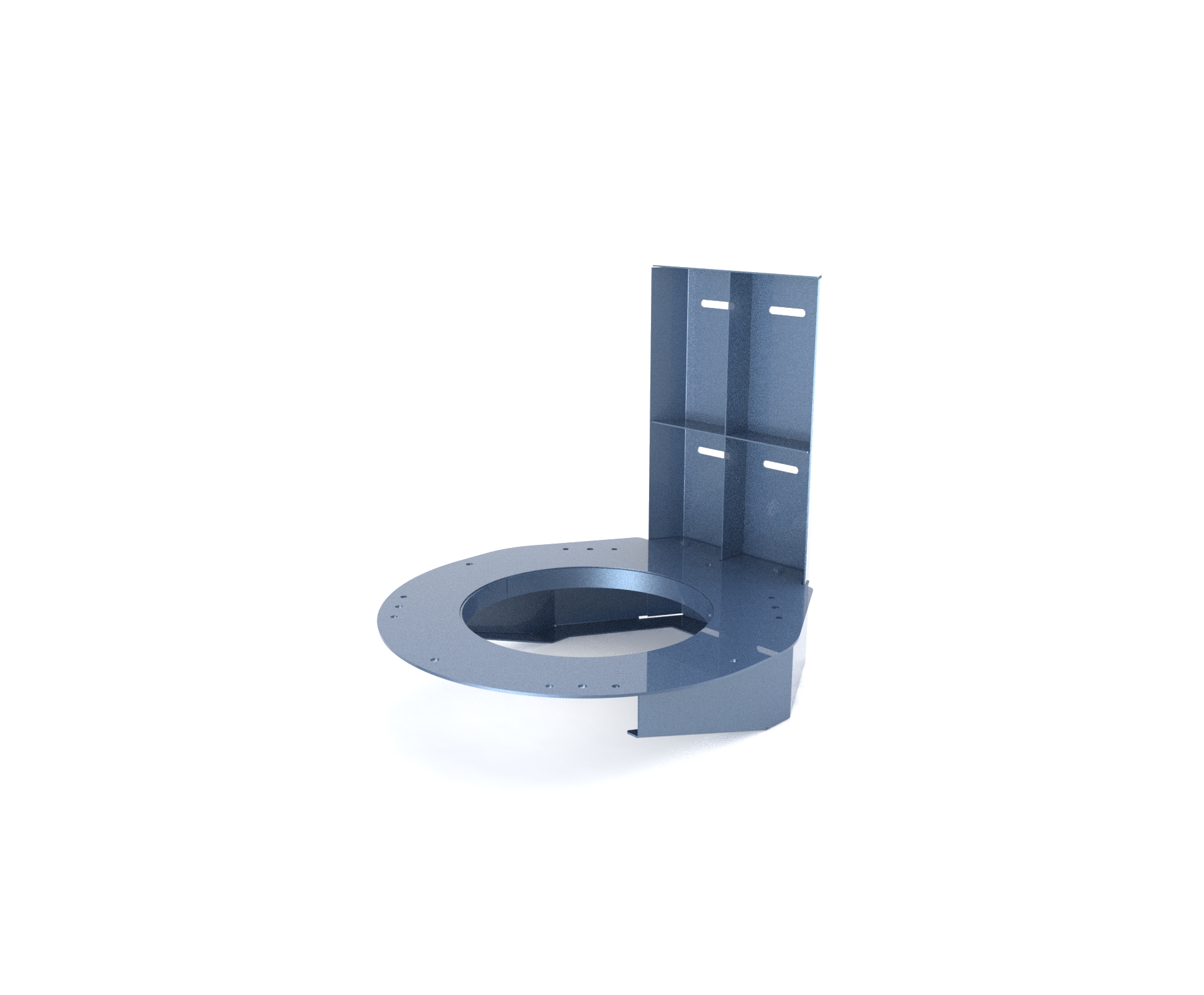

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

710CF

Airflow

1500CFM

Unit

Emma 2500

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

710CF

Airflow

1500CFM

Operating condition

41-122 F

Power supply

230/460V, 3-phase, 30/15A, 60Hz

Motor rating

5.5kW

Rated current

11.7A

Speed

3400 rpm

Height with HEPA

45''

Diameter

Ø 26.4’’

Weight

288 lbs

Inlet pipe

Ø 12''

Sound level

<70 db (A)

The oil mist eliminator Emma is the largest unit in the 3nine BLUE LINE Series and was designed specifically for applications where high airflow is essential, such as very large cabins or open machine tools.

The Emma develops 1,500 CFM (2500 m³/h) and works on enclosed cabins of up to 710 CF. Multiple Emma’s can be used to create a solution for flow rates needed above 1,500 CFM (2500 m³/h). Like the other BLUE LINE products, the Emma employs disc stack technology, so its maintenance requirements are minimal and efficiency is high and consistent.

With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.

Unit

Emma 2500

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

710CF

Airflow

1500CFM

Operating condition

41-122 F

Power supply

230/460V, 3-phase, 30/15A, 60Hz

Motor rating

5.5kW

Rated current

11.7A

Speed

3400 rpm

Height with HEPA

45''

Diameter

Ø 26.4’’

Weight

288 lbs

Inlet pipe

Ø 12''

Sound level

<70 db (A)

Installation images

Dennis Yeaton, General Manager Triangle engineering Inc., USA

Triangle Engineering Inc., USA

"Our first Clara was installed over a year ago, and has required ZERO maintenance. We now have three 3nine units installed, and our shop air is noticeably cleaner. The fact that the units are quiet and mounted directly on our machines is a bonus."
