Clara 1000
The oil mist eliminator Clara is suitable for just about any type of machine tool with a cabin size not exceeding 353 CF (10 m³).
The Clara effectively cleans the oil mist/oil smoke formed during parts processing and delivers clean air into the workshop, along with recycling almost all of your oil/coolant for reuse.
Clara operates on the disc stack separation principle and requires minimal maintenance. The Clara does not clog up and lose efficiency like a filtered technology – even under extreme conditions with high solids loading, such as applications involving casing or grinding with the use of the CIP.

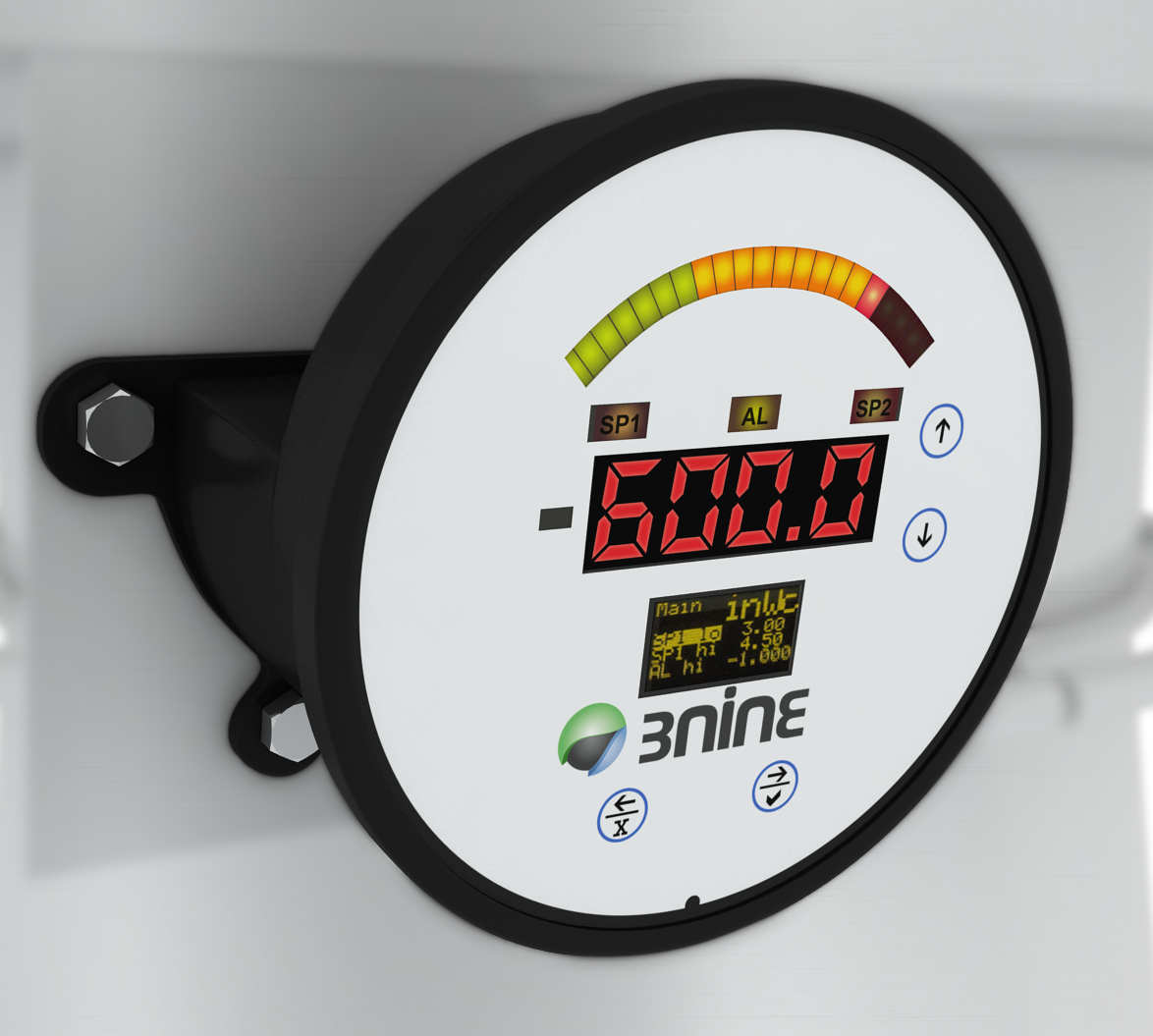

With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|

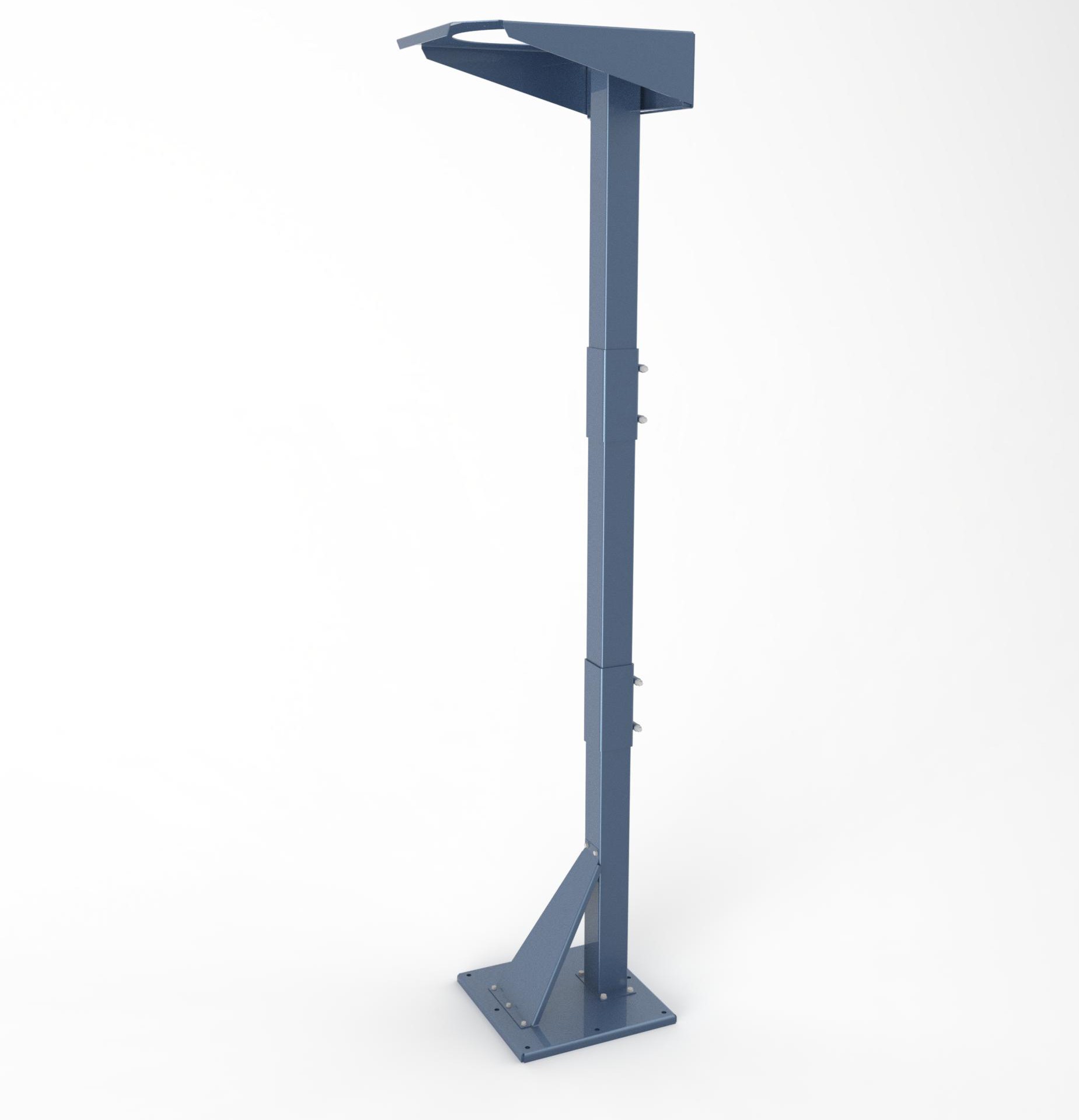

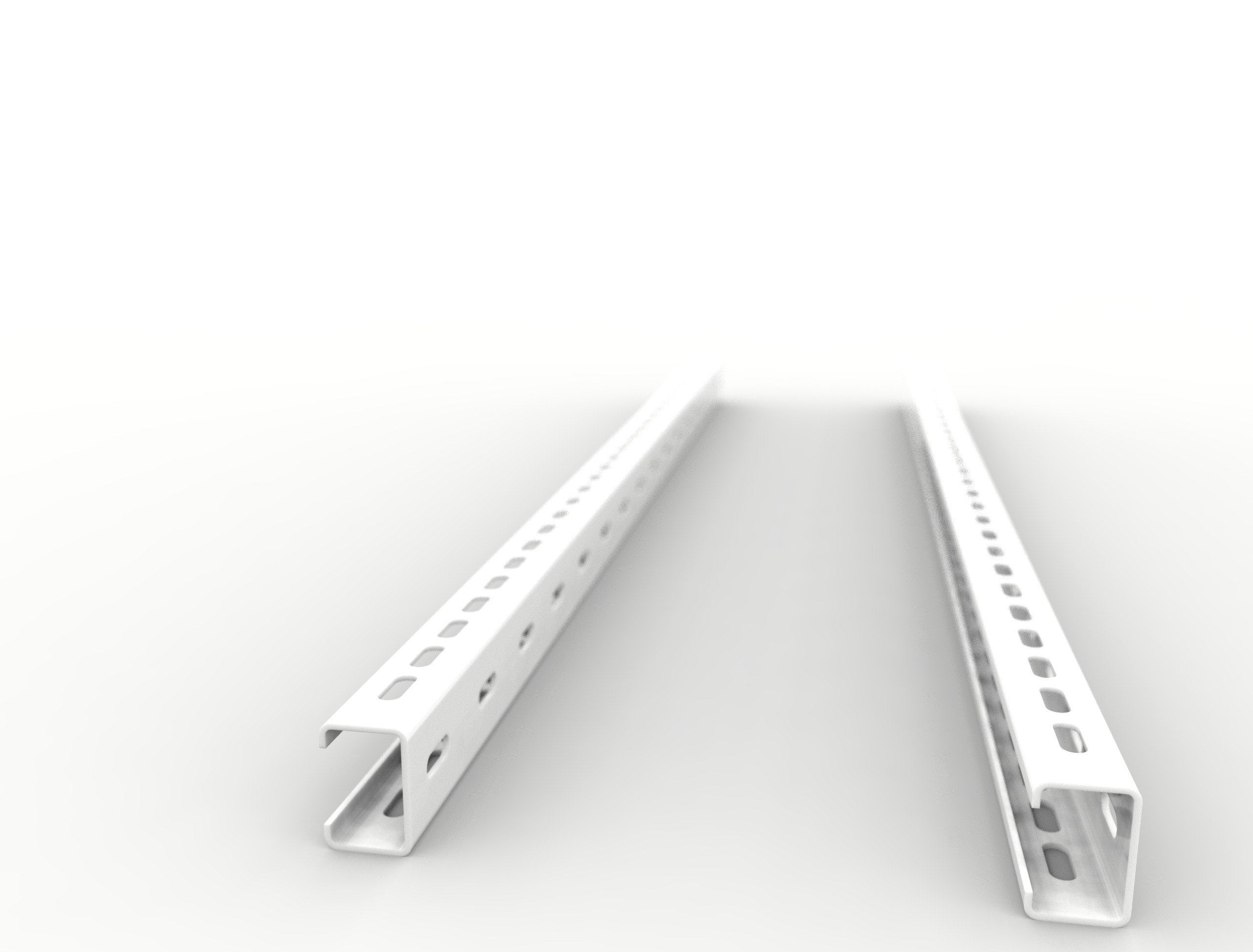

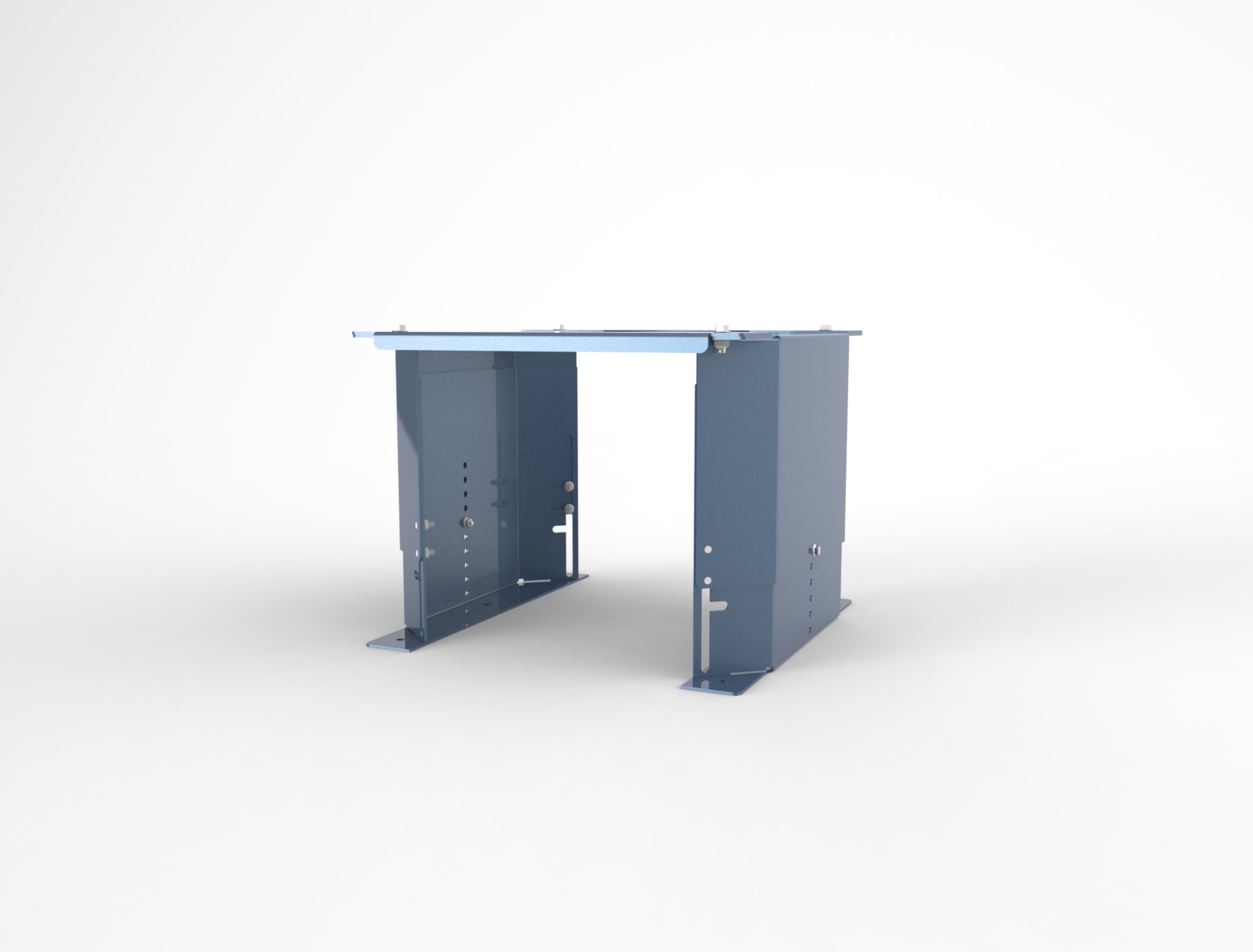

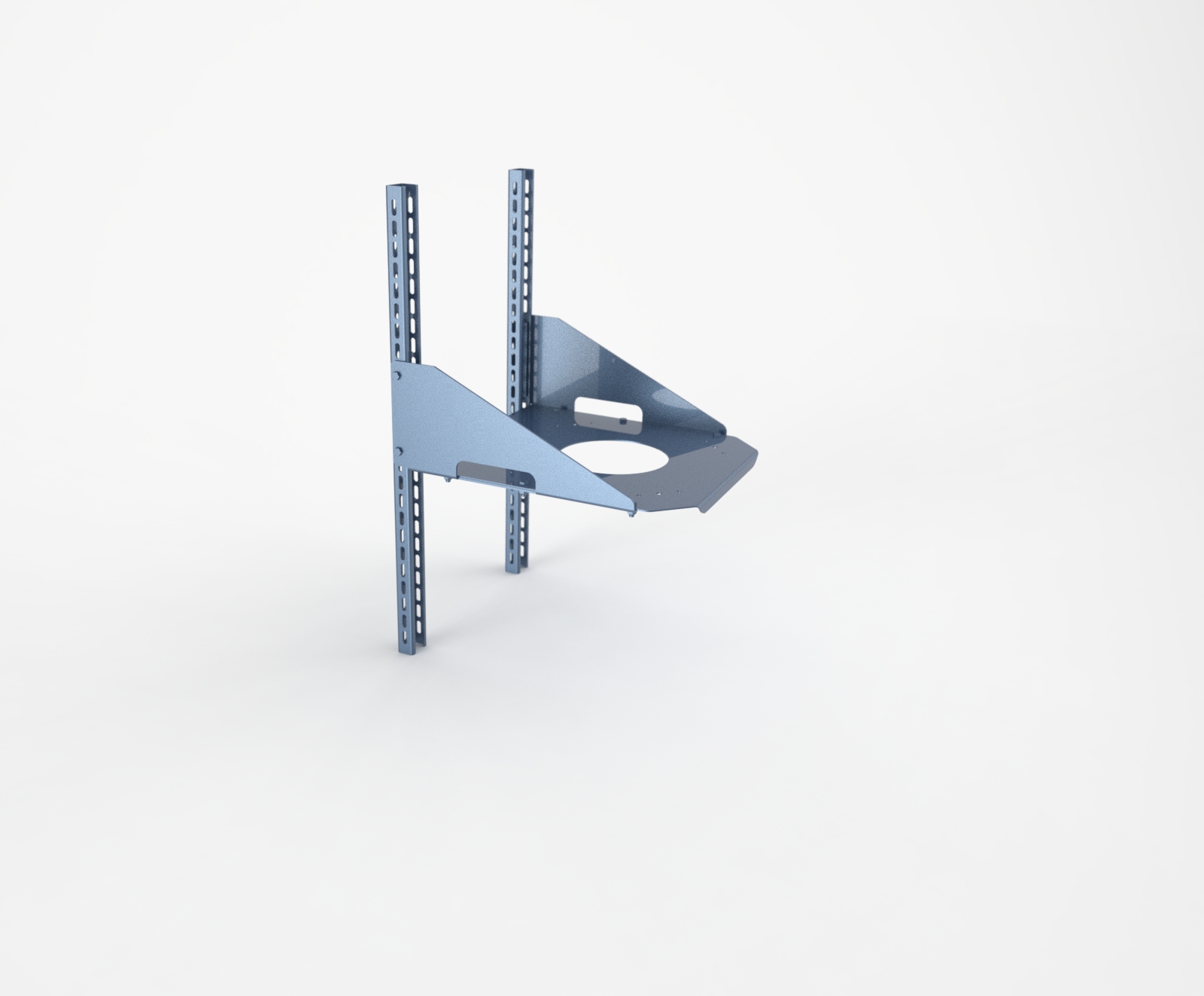

| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10 m3 |
| Airflow | 600CFM |
| Unit | Clara 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10 m3 |
| Airflow | 600CFM |
| Operating condition | 41-122 F |
| Power supply | 230/460V, 3-phase, 30/15A, 60Hz |
| Motor rating | 1.5kW |
| Rated current | 5.6A (230V) – 3.6A (460 V) |
| Speed | 3400 rpm |
| Height with HEPA | 45'' |
| Diameter | Ø 25'' |
| Weight | 196 lbs |
| Inlet pipe | Ø 6'' |
| Sound level | <65 dB (A) |
The oil mist eliminator Clara is suitable for just about any type of machine tool with a cabin size not exceeding 353 CF (10 m³).
The Clara effectively cleans the oil mist/oil smoke formed during parts processing and delivers clean air into the workshop, along with recycling almost all of your oil/coolant for reuse.
Clara operates on the disc stack separation principle and requires minimal maintenance. The Clara does not clog up and lose efficiency like a filtered technology – even under extreme conditions with high solids loading, such as applications involving casing or grinding with the use of the CIP.
With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.
| Unit | Clara 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10 m3 |
| Airflow | 600CFM |
| Operating condition | 41-122 F |
| Power supply | 230/460V, 3-phase, 30/15A, 60Hz |
| Motor rating | 1.5kW |
| Rated current | 5.6A (230V) – 3.6A (460 V) |
| Speed | 3400 rpm |
| Height with HEPA | 45'' |
| Diameter | Ø 25'' |
| Weight | 196 lbs |
| Inlet pipe | Ø 6'' |
| Sound level | <65 dB (A) |
