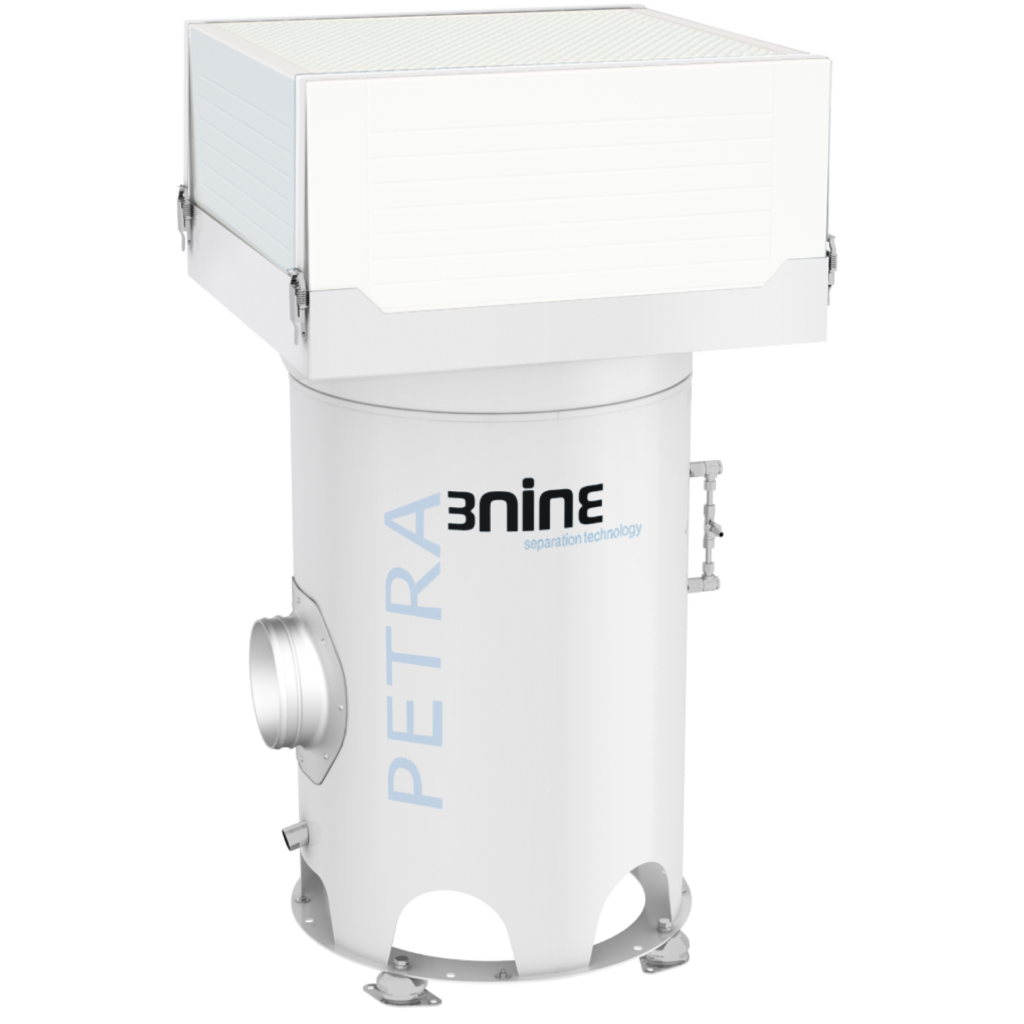

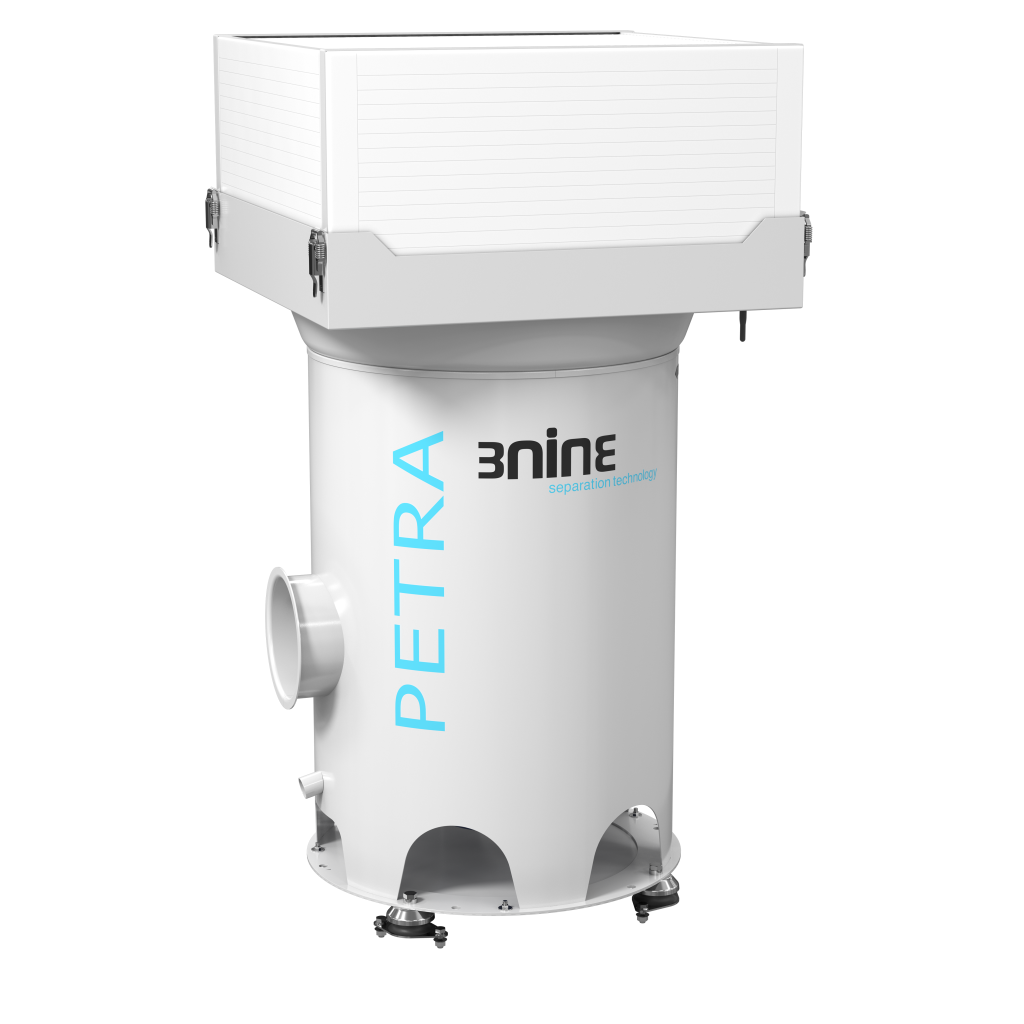

Petra 1000
The oil mist eliminator Petra is specifically designed to handle applications with a very high solid content, such as CNC grinding, polishing applications, machining of cast iron and heat treatment (quench oil) applications.
The Petra develops 600 CFM (1000 m³/h) and is suitable for all machine tools with a maximum cabin size of 353 CF (10 m³). It can easily be installed on most machine tools, which saves floor space and eliminates unnecessary pipe work and expensive pipe maintenance. This is important because these types of applications produce a great deal of the solid particles that can drop out in the pipes. It also makes it easier to move the machine tool when production requirements change.
With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10 m3 |
| Airflow | 600CFM |
| Unit | Petra 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10 m3 |
| Airflow | 600CFM |
| Operating condition | 41-122 F |
| Power supply | 230/460V, 3-phase, 30/15A, 60Hz |
| Motor rating | 1.5kW |
| Rated current | 5.6A (230V) – 3.6A (460 V) |
| Speed | 3400 rpm |
| Height with HEPA | 45'' |
| Diameter | Ø 19.7’’ |
| Weight | 211 lbs |
| Inlet pipe | Ø 6'' |
| Sound level | <70 db (A) |
The oil mist eliminator Petra is specifically designed to handle applications with a very high solid content, such as CNC grinding, polishing applications, machining of cast iron and heat treatment (quench oil) applications.
The Petra develops 600 CFM (1000 m³/h) and is suitable for all machine tools with a maximum cabin size of 353 CF (10 m³). It can easily be installed on most machine tools, which saves floor space and eliminates unnecessary pipe work and expensive pipe maintenance. This is important because these types of applications produce a great deal of the solid particles that can drop out in the pipes. It also makes it easier to move the machine tool when production requirements change.
With the new HEPA-filter monitor system you can monitor the HEPA-filter saturation level. If you equip your BLUE LINE oil mist eliminator with the HEPA-filter monitor you can set your own warning for the pressure drop levels and get an alarm when it’s time to order a new filter.
| Unit | Petra 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10 m3 |
| Airflow | 600CFM |
| Operating condition | 41-122 F |
| Power supply | 230/460V, 3-phase, 30/15A, 60Hz |
| Motor rating | 1.5kW |
| Rated current | 5.6A (230V) – 3.6A (460 V) |
| Speed | 3400 rpm |
| Height with HEPA | 45'' |
| Diameter | Ø 19.7’’ |
| Weight | 211 lbs |
| Inlet pipe | Ø 6'' |
| Sound level | <70 db (A) |
Installation images
Hirsh Precision

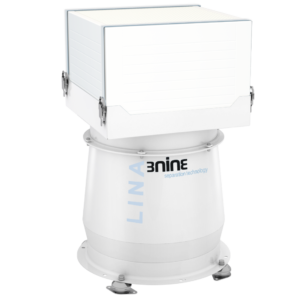

Hirsh Precision has used 3Nine’s Mist Recovery System on our shop floor for years. Their Lina 500 model in particular is the most reliable and low maintenance mist collector we use. As our team is preparing to add four new machines to our facility, 3Nine’s Lina 500 Mist Recovery System will be our air cleaner of choice.
