Advanced technology to eliminate oil mist

All 3nine eliminators are based on Disc Stacking Technology – a technology that is very efficient and allows you to spend less time on maintenance.

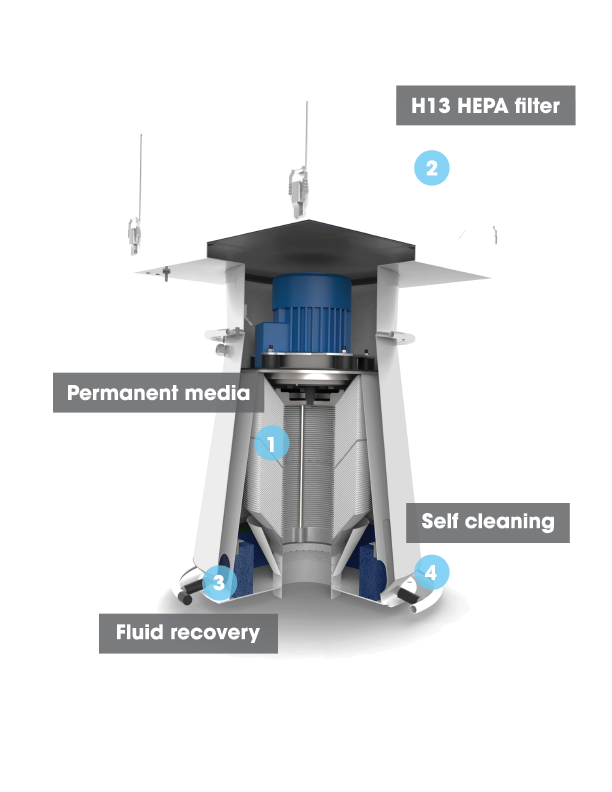

Operating principle

  1. Permanent media – The oil mist enters the disc stack where 99.9% of the fluid particles are separated from the air down to 1μm.
  2. H13 HEPA filter – The particles smaller than 1μm, will be collected by the final stage HEPA filter.
  3. Fluid Recovery – The separated cutting fluid is returned to the machine tool for reuse.
  4. Self Cleaning – The disc stack is continuously cleaned.

CIP – your maintenance partner

With our CIP (Clean in Place) particle buildup on the discs is avoided. The CIP system uses clean cutting fluid from the machine tool to automatically and continuously clean the discs.
